MV5 M50/25

Data Matrix CodeElectro-pneumaticDot peen markingHandheld

Mobile, strong
and fast in one

Powerful and fast markings due to pneumatic needle drive and still mobile for use directly at the workpiece.

Videos

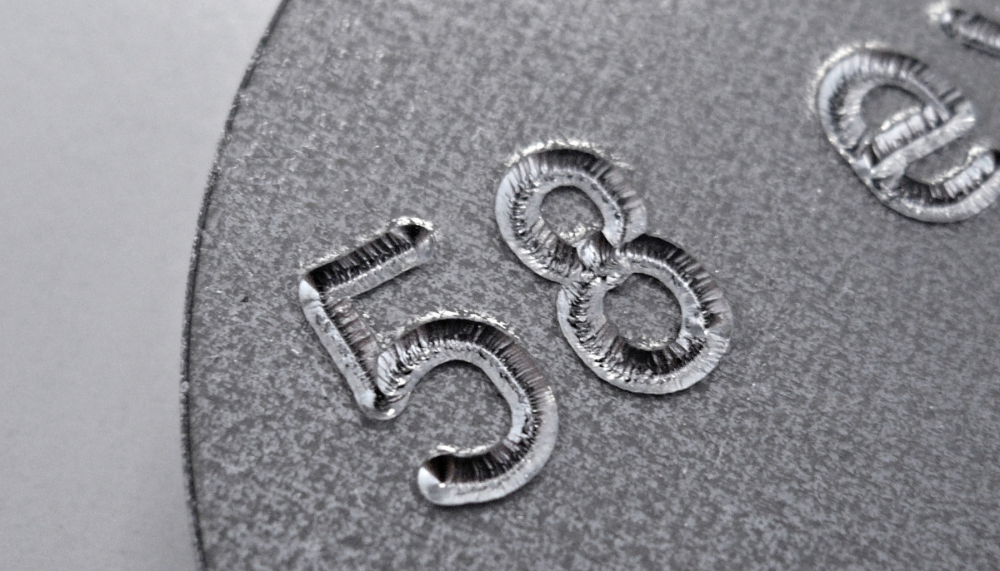

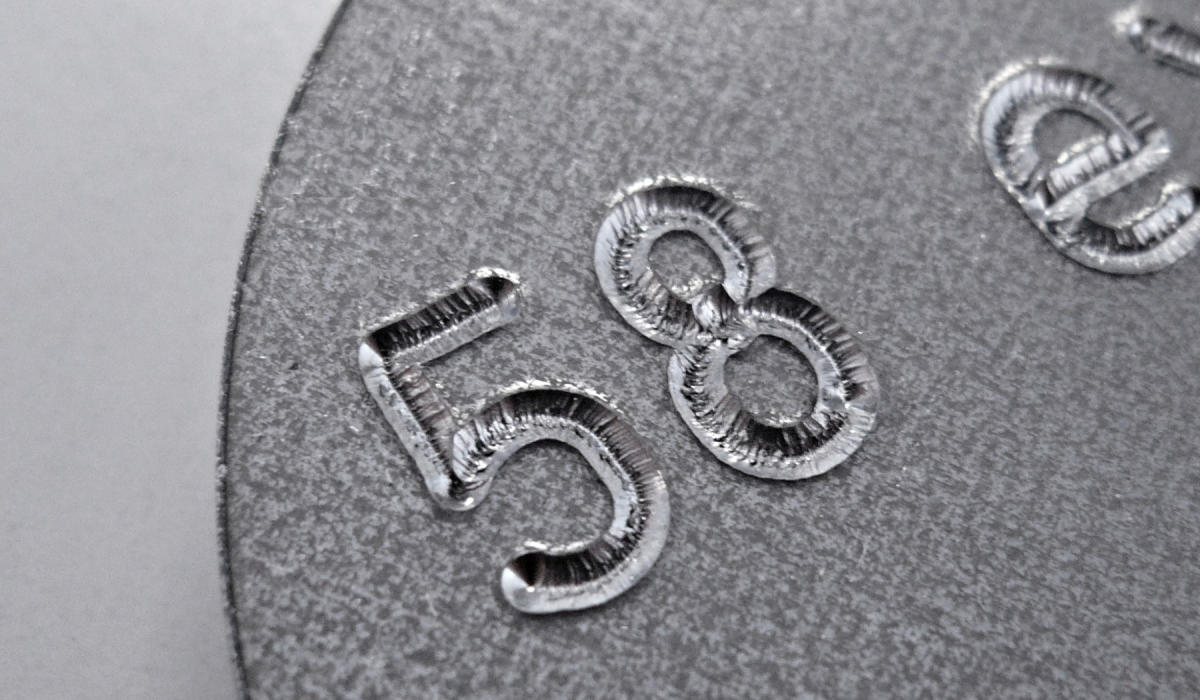

Sample markings

Downloads

Product details

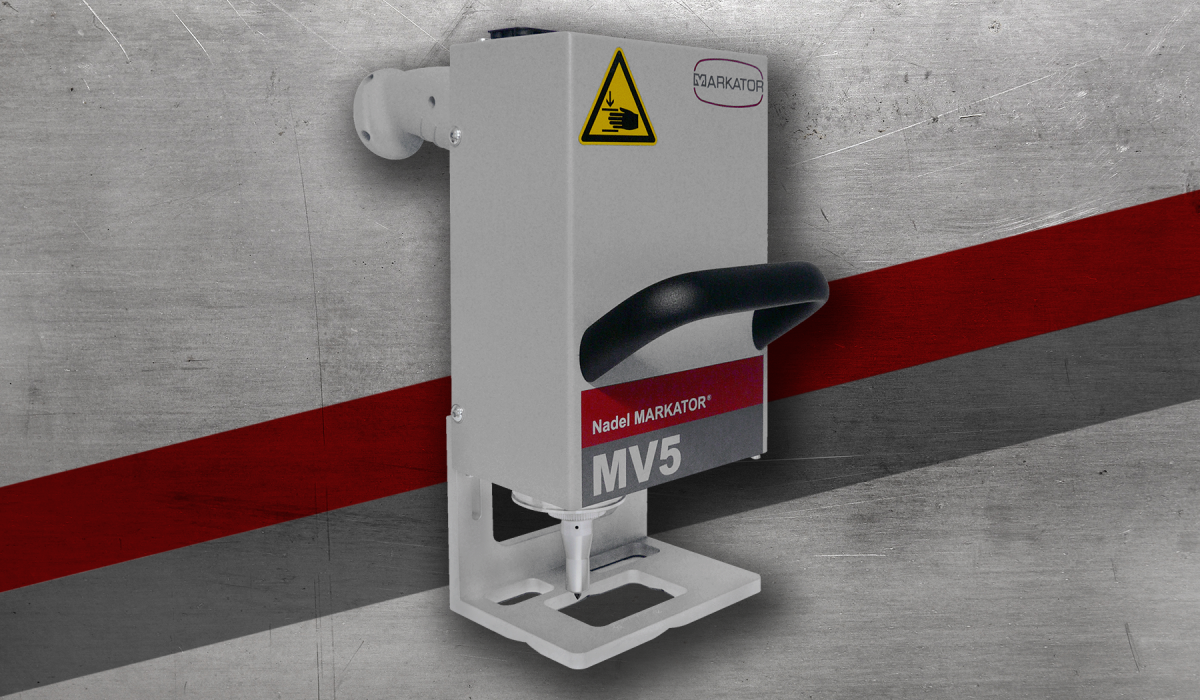

Due to its mobility, the pneumatically driven hand-held marking device MV5 M50/25 is perfectly suited for flexible marking of heavy, immobile and voluminous workpieces directly on site. The marking head is solidly guided in any position and in connection with the high-performance stepping motors they can be used in any position. The marking is produced by a solid carbide marking pin.

MOBILE

  • High functionality through combination with various control systems
  • Space-saving and very handy hand-held marking system
  • Compact construction and ergonomic design
  • High functionality through modular MARKATOR design system

FAST

  • High rigidity due to high-quality linear guides (double guided)
  • Fast oscillating marking pin for precise line markings
  • High repeatability
  • Shortest marking times due to latest control technologies

STRONG

  • Extremely precise and distortion-free marking results
  • Optimum power transmission on the workpiece to be marked
  • High marking strength through pneumatic tool drive
  • Optional valve kit available for maximum marking depth



Marking areas (x/y): 50 x 25 mm / 50 x 45 mm / 80 x 25 mm / 80 x 45 mm / 120 x 25 mm / 120 x 45 mm

Weight: from 3,2kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,05 mm for a very high marking quality

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 301 XL MV5 ZE 401 XL
19" version: yes yes
Plug-in card slots: 2 4
Operation / Data input: Clavier USB Clavier en feuille
Interfaces: 3x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: no yes
Communication cards (optional): non PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): no yes
Safety relay module (optional): yes yes
